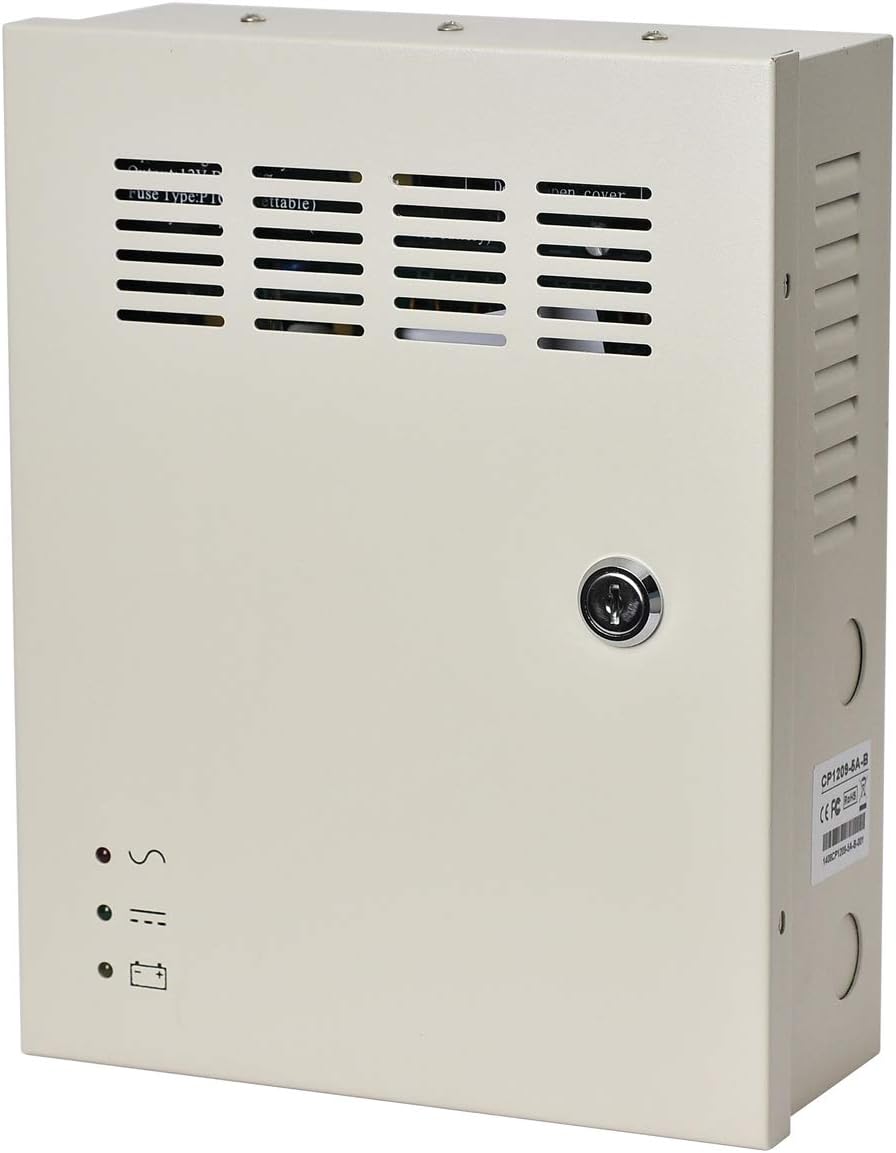

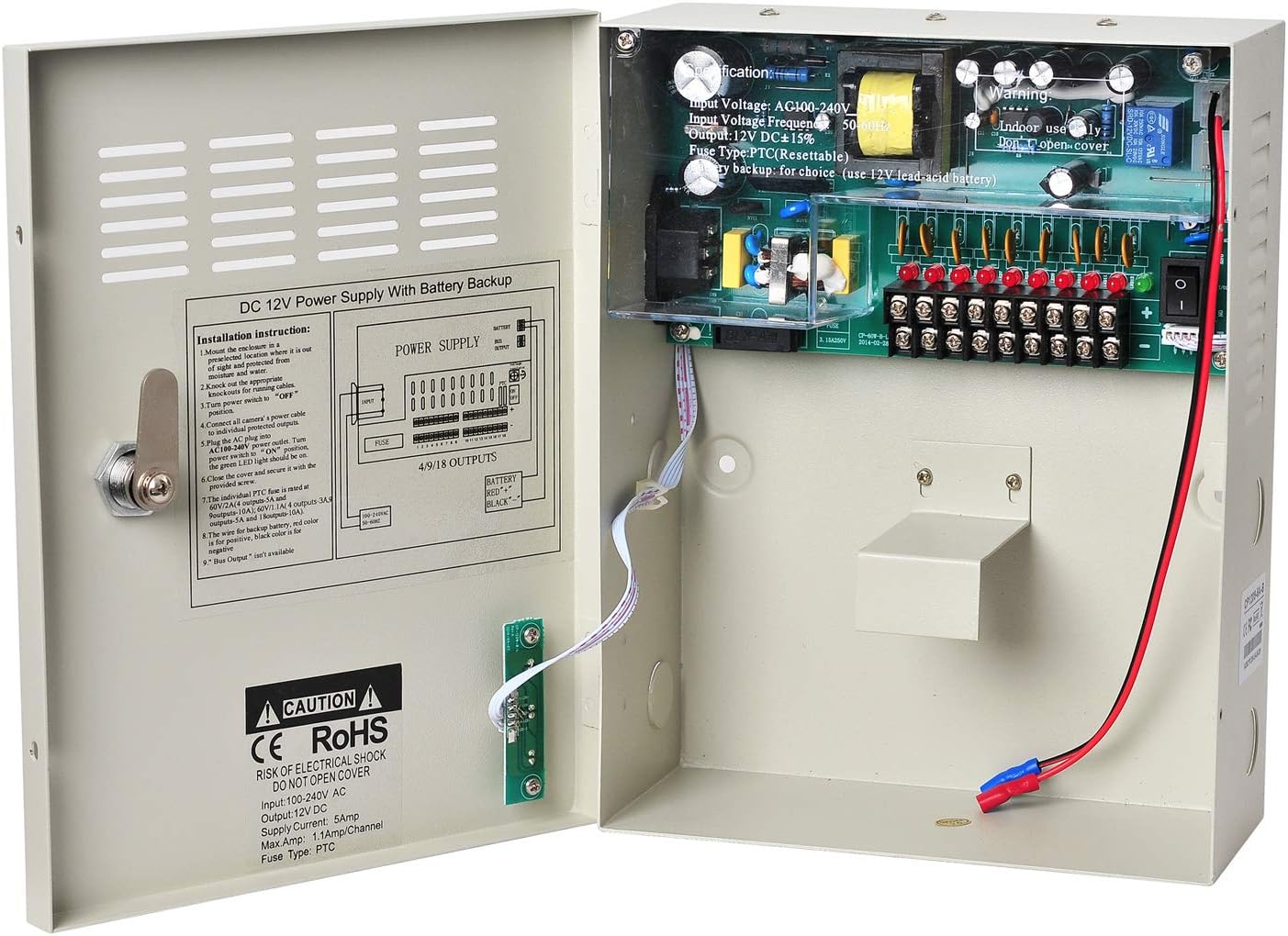

9 Channel 12V 5Amp DC Metal Boxed Cabinet Regulated UPS Power Supply Unit W72516
9 Channel 12V 5Amp DC Metal Boxed Cabinet Regulated UPS Power Supply Unit W72516
Suitable for CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etc. Battery Backup: Use 12V Lead-acid battery (Not included)
General Protection: Individual PTC (Positive Temperature Coefficient) Fuse and LED indicator on each output, when problem occurs, only affect the individual output, other outputs still working;
Short Circuit Protection: When short circuit occurs, Individual PTC Fuse will cut off the circuit and when breakdown removed, PTC fuse will automatically be restoring circuit;
High voltage protection: When high voltage occurs, the surge protection will be hit through to protect the connected device;
Over Current protection: When over current occurs, the power supply will automatically switch to self-protection status, when it is removed, then it will return to normal state;
Features:
Suitable for CCTV Camera, PTZ, IR Illuminators, Video Process, Access Control, etc. Battery Backup: Use 12V Lead-acid battery (Not included)
General protection: each output has independent PTC fuse and LED indicator, when problem occurs, only affect the independent output, other outputs still working.
Circuit short protection: when short condition occurs, independent PTC fuse will open the circuit,when condition removed, PTC fuse will automatically back to close.
High voltage protection: when high voltage occurs, the surge protection will be hit through to protect the connected device.
Over Current protection: when over current occurs, the power supply will automatically switch to self-protection status, when condition removed, then switch back to normal.
Application ： CCTV Camera, PTZ, IR Illuminator, Video Processor， Access Control , etc.
Packing Dimension ： 250 x 215 x 94 （ mm ）
Net Weight ： 2.3Kg
Specification:
Input Voltage ： AC 100-240V
Input Voltage Frequency ： 50/60Hz
Output Voltage ： DC 12V +/-5%
Total Output Current ： 5A
Total Outputs ： 9
Fuse Type ： PTC (Resetable)
Fuse Rating ： 1.1A
